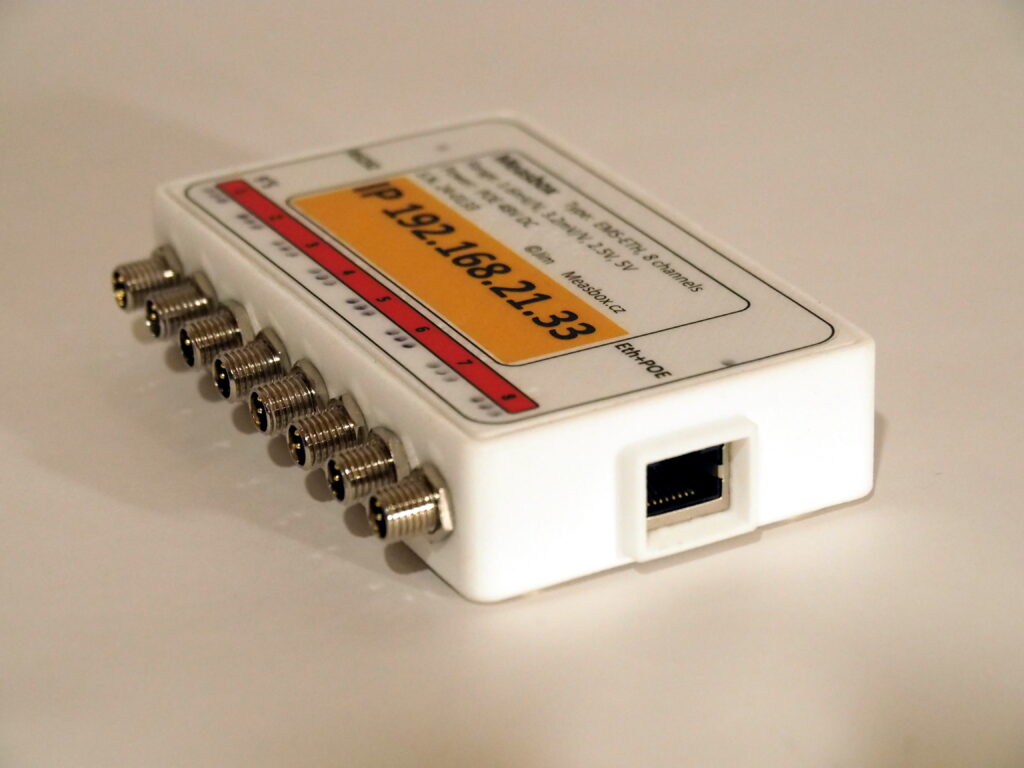

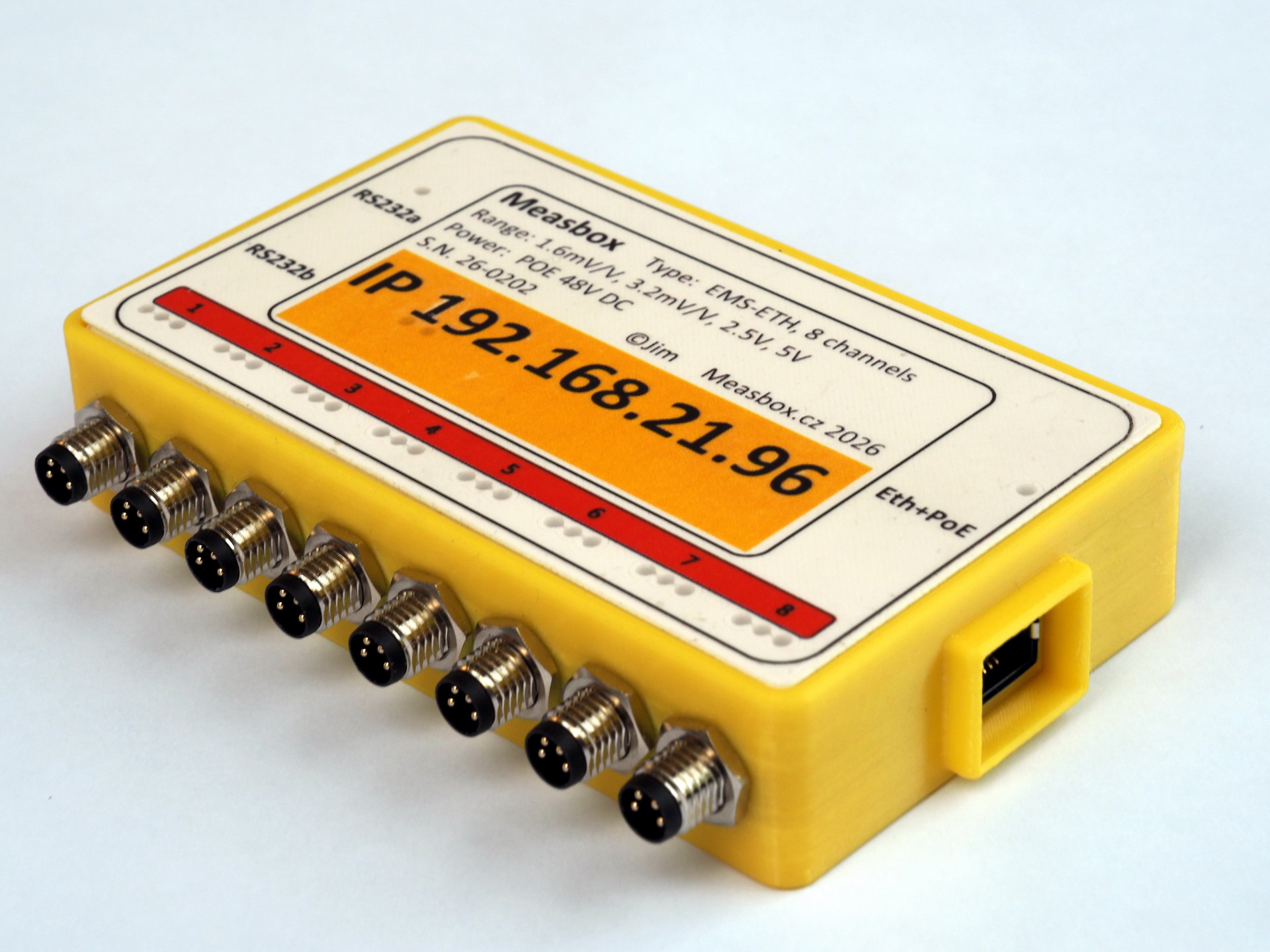

Measuring module EMS-ETH – Ethernet connection
EMS-ETH – parameters
| Number of analog inputs | 8 |
| Number of digital inputs (RS232) | 2 |
| Measuring range – strain gauges | 1.6, 3.2 mV/V |
| Measuring range – voltage | 2.5, 5 V |
| Input resistance | 1 MΩ |
| Sampling frequency | 4000 – 16000 Hz |
| RMS noise | 0.013% of measuring range |
| Bandwidth (-3dB) | 0 – 2400 Hz |
| RS232 speed | 9.600 – 115.2 kbps |
| Connecting to a parent system | 100BASE-TX, RJ45 |
| Protocol | TCP/IPv4, UDP |
| Max. number of connected clients | 4 |
| Supply voltage | 48 – 57 V DC (POE) |
| Power consumption (without connected sensors) | 2 W |
| Sensor power supply | 5 V |
| Max. total sensor current | 0.5 A |
| Analog input connector | M8 4pin (M) |
| RS232 connector | M8 4pin (F) |
| Degree of protection | IP20 |
| Ambient operating temperature range | -20 °C .+50°C |
| Dimensions | 124 x 75 x 25 mm |
| Weight | 190 g |

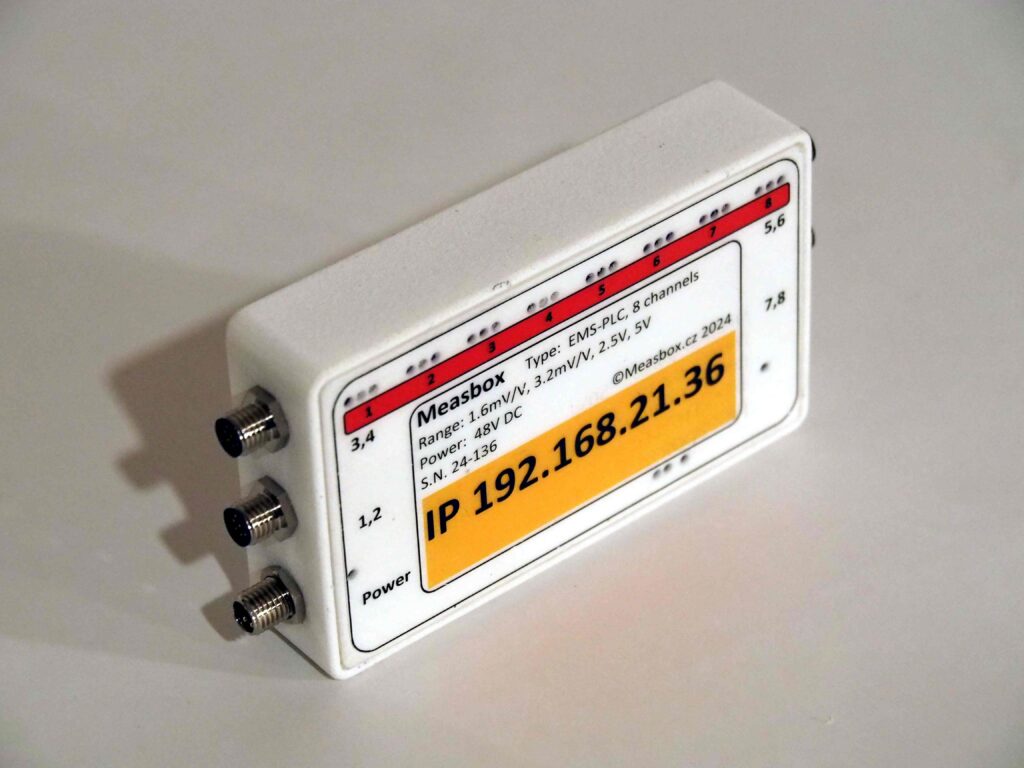

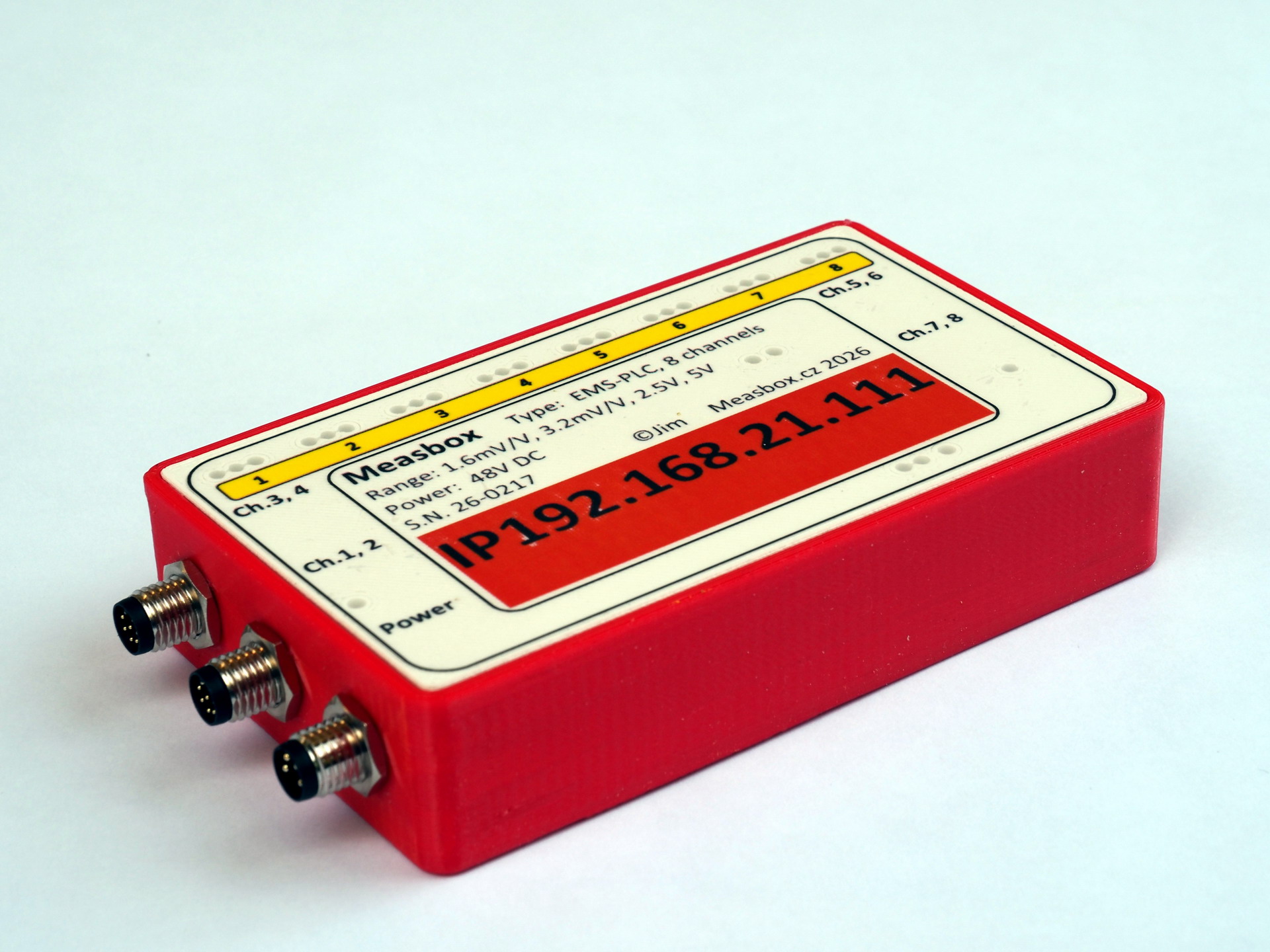

Measuring module EMS-PLC – PLC connection
| Number of analog inputs | 8 |
| Measuring range – strain gauges | 1.6, 3.2 mV/V |
| Measuring range – voltage | 2.5, 5 V |
| Input resistance | 1 MΩ |
| Sampling frequency | 4000 – 16000 Hz |
| RMS noise | 0.013% of measuring range |
| Bandwidth (-3dB) | 0 – 2400 Hz |
| Connecting to a parent system | HomePlug AV 200Mbit |
| Protocol | TCP/IPv4, UDP |
| Max. number of connected clients | 4 |
| Supply voltage | 48 – 57 V DC |
| Power consumption (without connected sensors) | 3 W |
| Sensor power supply | 5 V |
| Max. total sensor current | 0.4 A |
| Analog input connector | M8 4pin (F) |
| Degree of protection | IP55 |
| Ambient operating temperature range | -20 °C .+50°C |
| Dimensions | 129 x 67 x 25 mm |
| Weight | 160 g |

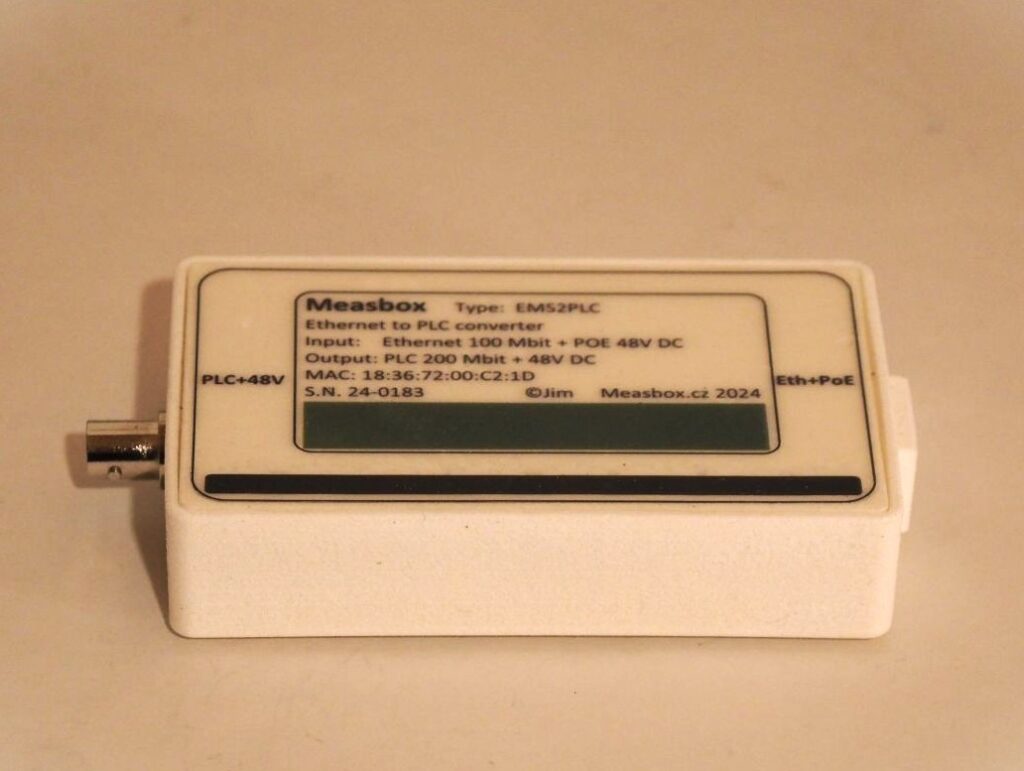

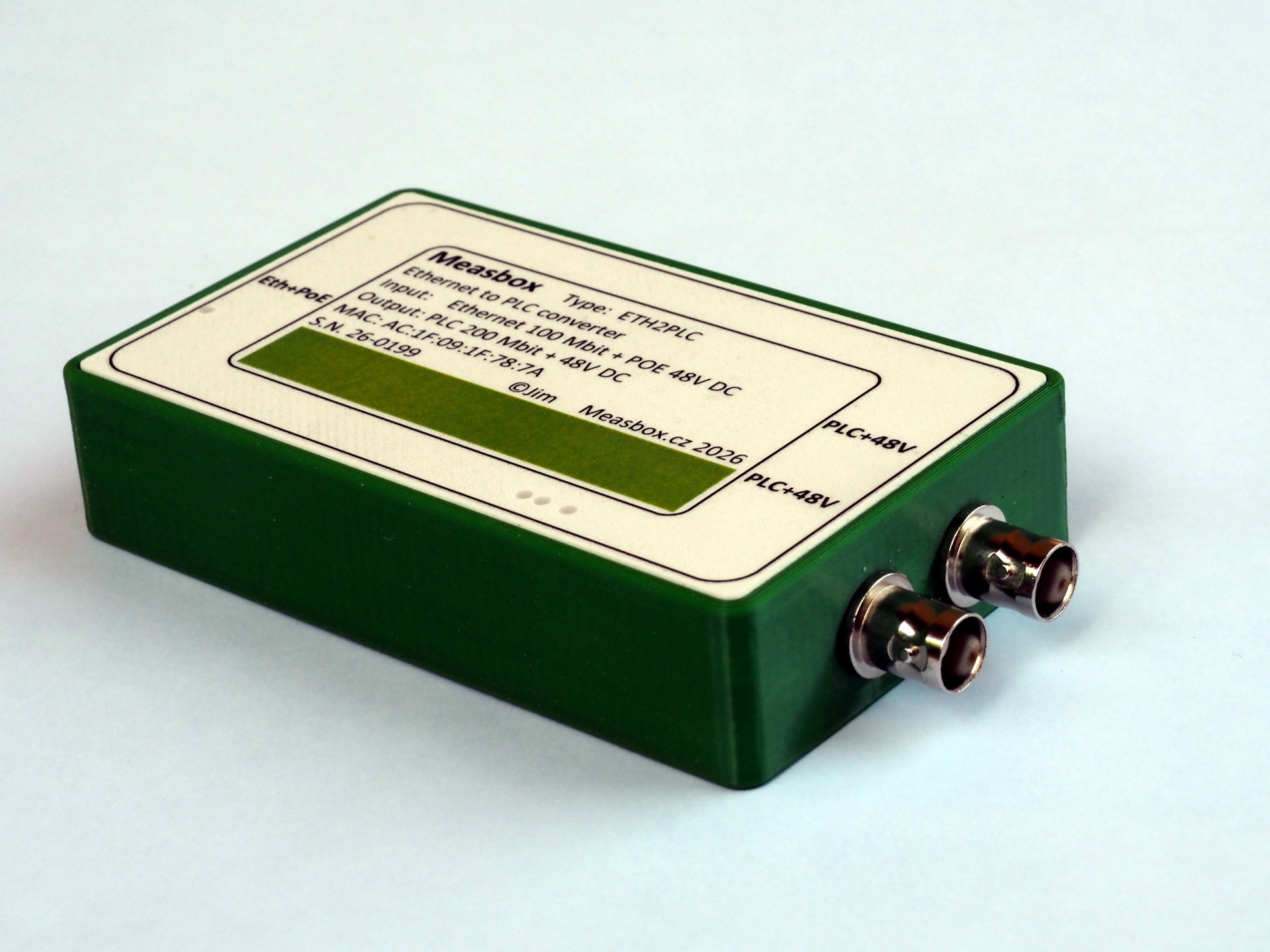

Ethernet-PLC converter ETH2PLC
ETH2PLC – parameters
| Max data rate | 200 Mbit/s |
| Transmission band | 2 až 30 MHz |
| Input | Ethernet 100BASE-TX, POE, RJ45 |
| Output | PLC IEEE1901, 48-57 V DC, BNC (F) |
| Max. number of EMS-PLC module connections | 4 |
| Supply voltage | 48 – 57 V DC (POE) |
| Power consumption (without connected PLC modules) | 3 W |
| Degree of protection | IP20 |
| Ambient operating temperature range | -20 °C .+50°C |
| Connecting to a parent system | 100BASE-TX, RJ45 |
| Dimensions | 130 x 75 x 25 mm |
| Weight | 130 g |

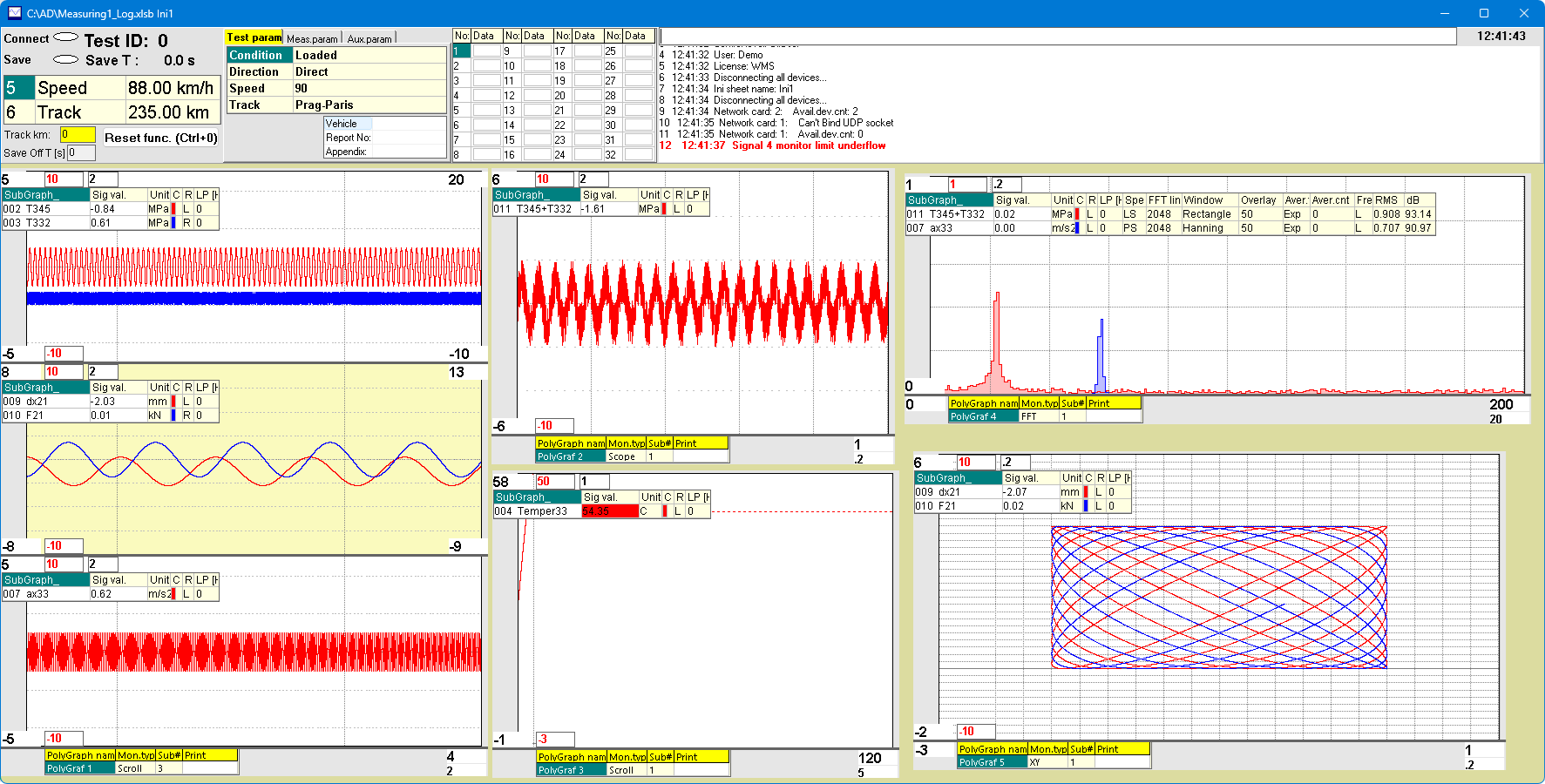

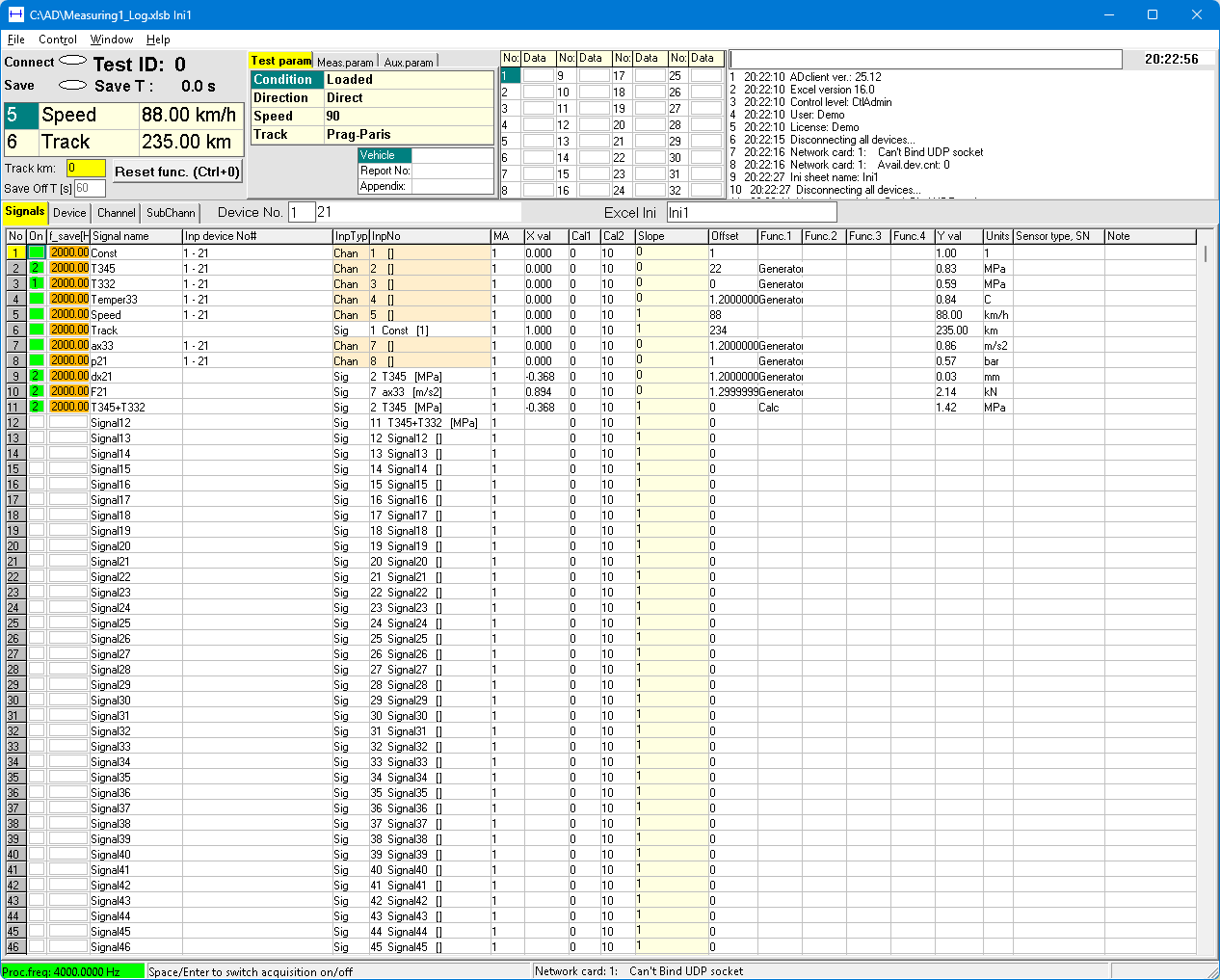

Measuring software ADclient
ADclient – parameters
| Max. number of connected measuring modules | 32 |
| Max. number of processed signals | 200 |
| Process frequency | 4000 – 16000 Hz |
| Data format of recorded signals | ads, mat, txt, IEEE754 |
| Operating system | MS Windows 64bit |
| Additional software | MS Excel |
| Online mathematical functions | Calc, Filter, MovAver and about 20 others |
| Max.number of Poly-graphs | 16 |
| Max.number of Sub-graphs in Poly-graph | 16 |
| Types of Poly-graphs | Scroll, Scope, XY, FFT |

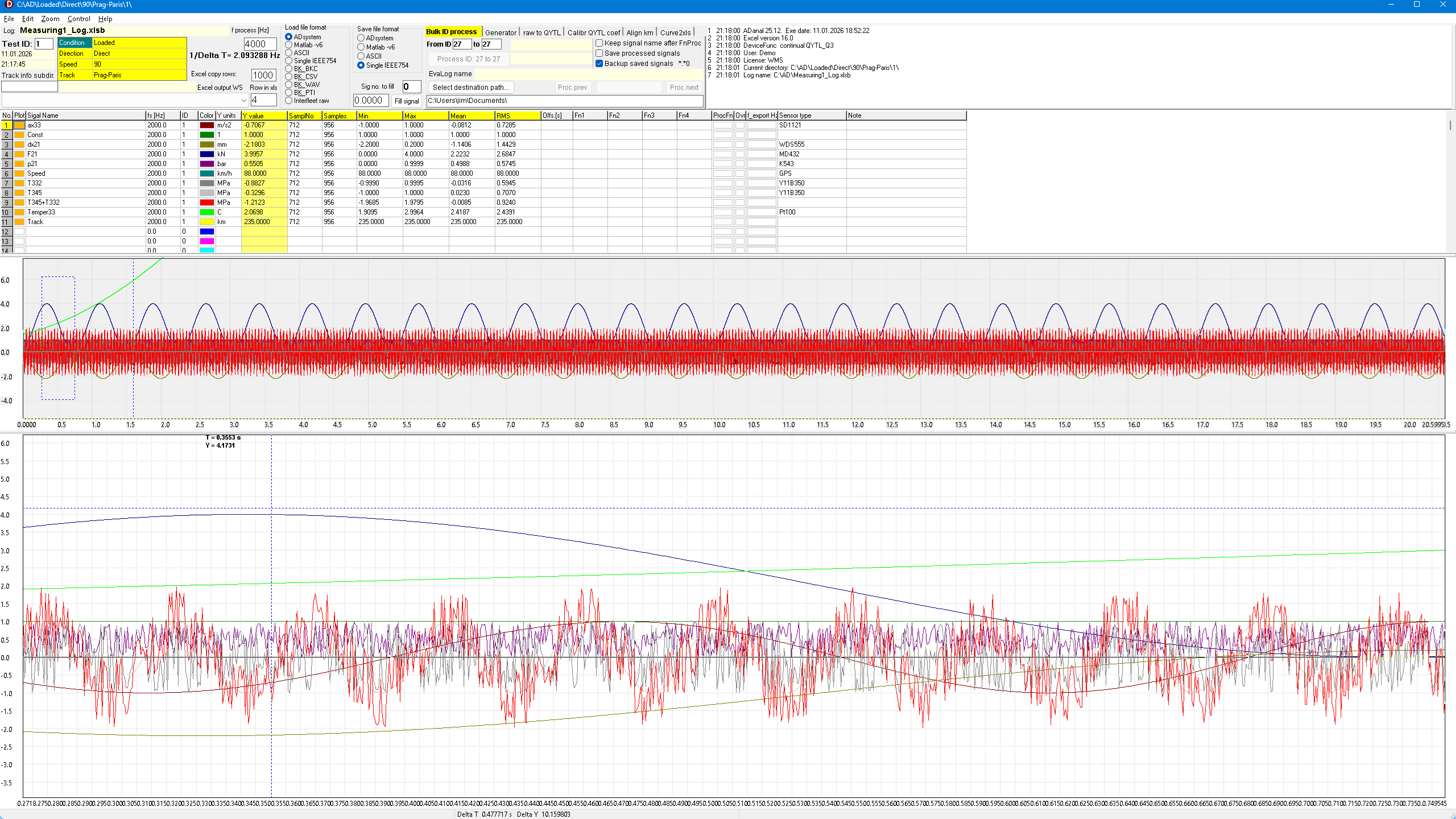

Evaluation software ADanal
ADanal – parameters
| Max. number of processed signals | 200 |
| Recorded data format | ads, mat, txt, IEEE754, B&K |
| Data export format | ads, mat, txt, IEEE754 |
| Operating system | MS Windows 64bit |
| Additional software | MS Excel |
| Signal processing functions | Calc, Filter, MovAver and about 20 others |
